CNC MILLING MACHINE CENTRE

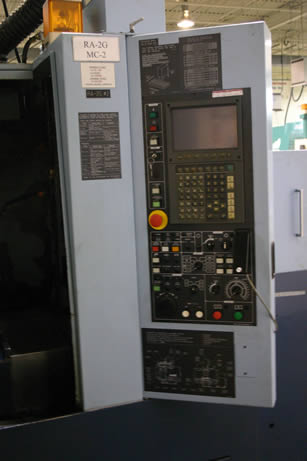

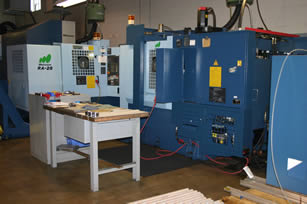

SIX (6) RA-2G HIGH SPEED PALLET CHANGER
CNC 3 Axis Vertical Machining Centre
Axis Travel X-660 mm, Y-460 mm, Z-485 mm
Work Table 940 x 460 mm
Spindle speed range 50 - 15,000 rpm
Storage capacity 30 tools
Repeatability +/- 0.001 mm / full stroke
X, Y, Z Axis
Positioning Accuracy (X/Y) 0.01 / full
stroke
Positioning Accuracy (Z) 0.0 12 mm / full
stroke
Pallet clamping repeatability 0.003 mm
Number of pallets (2)
Extended Ethernet Disk Memory
CNC Control Yasnac J300 B
ONE (1) ES-450 HII HIGH SPEED PALLET CHANGER
CNC 4 Axis Horizontal Machining Centre
Axis Travel X-450 mm, Y-400 mm, Z-400 mm
(+ 250 when pallet is changed)
Pallet size 300 x 300 mm
Spindle Speed range 50-15,000 rpm
Number of tools - standard - 30
Number of pallets (2)
Repeatability + /- 0.001 mm X, Y ,Z Axis
Positioning Accuracy (X, Y, Z) 0.012 mm
Extended Ethernet Disk Memory
CNC Control Fanuc 15 M

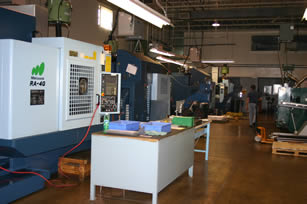

TWO (2) RA-4G HIGH SPEED PALLET CHANGER
CNC 4 Axis Vertical Machining Centre
Axis Travel X-1020 mm, Y-550 mm,
Z-510 mm
Work Table 1150 X 510 mm
Pallet Size 100 x 490 mm
Spindle speed range 50 - 15,000 rpm
Number of tools -30
Number of pallets (2)
Repeatability (X, Y) +/- 0.005 mm
Repeatability (Z) +/- 0.006
Positioning Accuracy (X, Y, Z) +/- 0.001 mm
CNC Control Yasnac J300

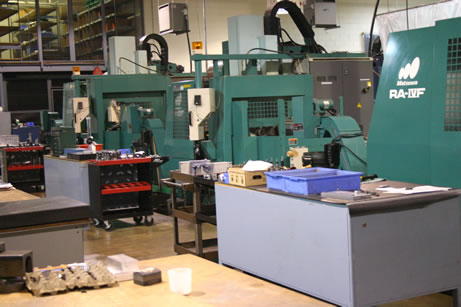

ONE (1) MATSUURA RA–IVF PALLET CHANGER
 CNC 4 Axis Vertical Machining Centre
Work Table 39.3" x 19.2"
Axis Travel X-40.2", Y-20.1", Z-27.95"
30 Tools ATC
8000 RPM Spindle, 10HP
Repeatability ± 0.00004" X, Y, Z Axis
Repeatability ± 0.00008" X, Y, Z Axis
CNC Control Matsuura System 180 Control
Pallet changers
ONE (1) MATSUURA RA–IVF PALLET CHANGER
CNC 3 Axis Vertical Machining Centre
Work Table 39.3" X 19.2"
Axis Travel X- 40.2", Y-20.1", Z-27.95"
30 Tools ATC
8000 RPM Spindle, 10 HP
Repeatability + 0.00004" X, Y, Z Axis
CNC Control Matsuura System 180 Control
Pallet changers

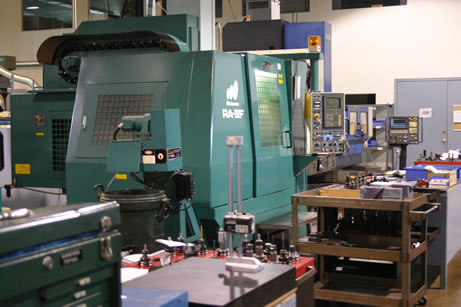

ONE (1) MATSUURA RA–IIF PALLET CHANGER
 CNC 3 Axis Vertical Machining Centre
Work Table 31.4" X 16.5"
Axis Travel X- 31.5", Y-17.3", Z-25"
30 Tools ATC
8000 RPM Spindle, IOHP
Repeatability + 0.00004" X, Y, Z Axis
CNC Control Matsuura System 180 Control
Pallet changers

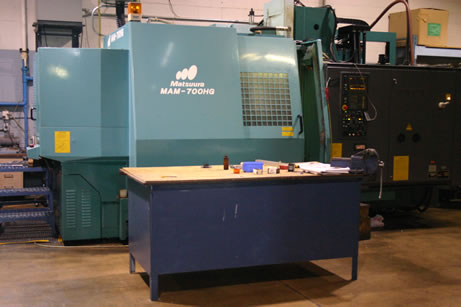

ONE (1) MATSUURA MAM-700 HG PALLET CHANGER
CNC 4 Axis Horizontal Machining Centre
Work Table 19.69" x 19.69"
Axis Travel X - 29.53", Y - 23.6", Z - 24.62"
60 Tools ATC
30 - 10,000 RPM Spindle Speed, 30 HP
Repeatability +/- 0.0006"
CNC Control Yasnac J300 (64-bit Processor)
ONE (1) MATSUURA MC 1000 VG
 CNC 3 Axis Vertical Machining Centre
Spindle Speed range 50-15000 rpm
Repeatability +/- 0.001 mm / full stroke, X, Y, Z Axis
Positioning Accuracy (X/Y) 0.01/full stroke
Positioning Accuracy (Z) 0.0 12 mm / full stroke
Chip flush system
Lift up chip conveyer
C-type cornering software
CNC Control Yasnac J300 B

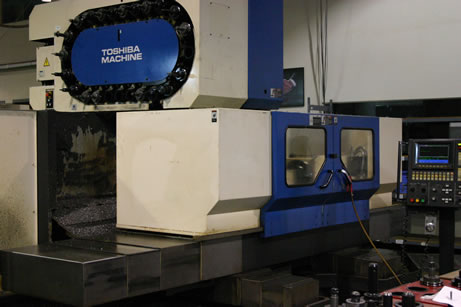

ONE (1) TOSHIBA VMC-650
CNC 4 Axis Vertical Machining Centre
Work Table 70.9" x 32.5"
Axis Travel X-51.2", Y-25.6", Z-24"
24 Tools ATC
20-5000 RPM Spindle Speed, 15HP
Repeatability ±0.00006" X, Y, Z Axis
CNC Control Tosnuc 888 (32-bit processor)
ONE (1) MAKINO 40-A60
CNC 4 Axis Horizontal Centre
Two (2) APC Pallet Changer
4Th Axis Rotary Table 16" x 16"
Axis Travel X-38", Y-16", Z-16"
60 Tool ATC
8000-RPM Spindle, 15 HP
Repeatability + 0.00008" X, Y, Z Axis
Repeatability "B"-Axis + 1 sec.
CNC Control Fanuc 11M 4 Axis
